Description
Upgrade your optical system with our high-performance 1.7mm F2.0 5MP M12 Fisheye Lens. Featuring an ultra-wide 195° field of view (F.O.V.) and a compact 20.2mm T.T.L., this premium Fixed Focal M12 Lens delivers seamless 360° blind-spot-free imaging. Built with a rugged 5G+1MG (5 Glass + 1 Molded Glass) optical construction, it ensures exceptional clarity, low light performance, and extreme durability for next-generation Automotive Vision, Machine Vision, and Smart Security applications.
Key Product Highlights
- 195° Ultra-Wide Panomorph Vision: Eliminates all blind spots with a true 195° diagonal, horizontal, and vertical field of view, maximizing situational awareness for surround-view systems.
- 5-Megapixel High-Definition Clarity: Engineered for 5MP high-resolution sensors, delivering crisp, edge-to-edge details essential for precise Machine Vision and AI facial recognition.
- Micro T.T.L. & Ultra-Short Design: The 20.2mm Total Track Length (T.T.L.) ensures a low-profile footprint, fitting seamlessly into space-constrained smart doorbells and sleek automotive housings.
- Premium 5G+1MG Glass Optics: Utilizing 5 precision glass elements and 1 molded glass element to counter thermal drift, guaranteeing crystal-clear imaging from -40°C to +85°C.

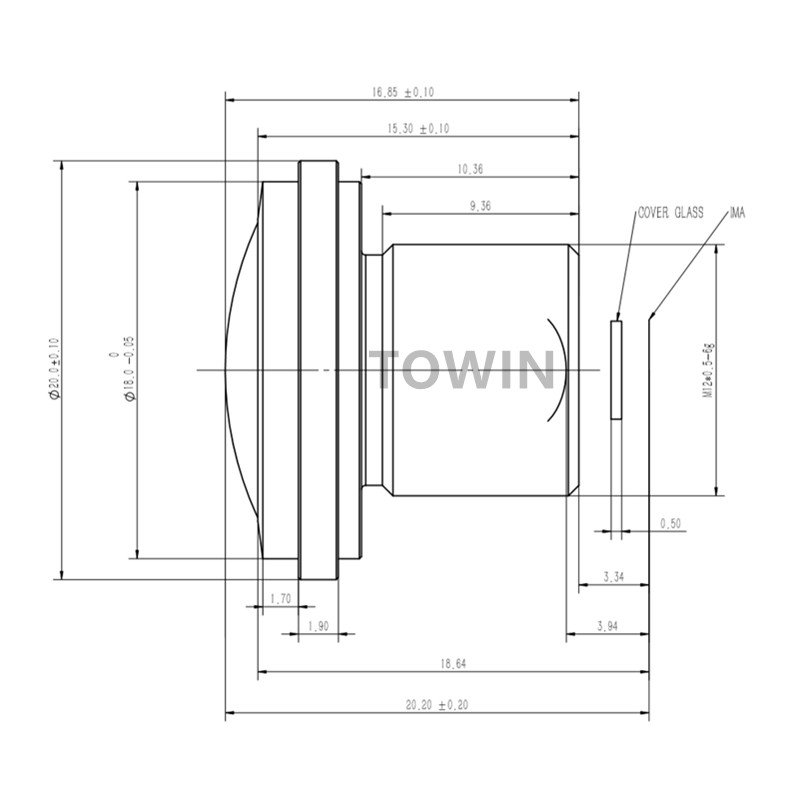

Product Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Image Format | Φ4.8 mm | Aperture | F2.0 |
| Focal Length | 1.7 mm | Mount | M12 x 0.5 |
| F.O.V. (D/H/V) | 195° / 195° / 195° | Iris | Fixed |
| Resolution | 5 Megapixel (5 MP) | M.O.D. | 0.1 m |
| Optical Distortion | < -118% | T.T.L. | 20.2 mm |
| Lens Construction | 5G + 1MG (Glass) | Focus Type | Fixed |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
Core Application Scenarios
This 1.7mm 5MP M12 Lens is purpose-built for environments demanding a maximal viewing area within an ultra-compact setup. It excels in Automotive 360° Surround View Systems (AVM) and blind-spot detection, thriving in harsh outdoor driving conditions. In smart home ecosystems, it serves as the optical core for smart video doorbells and panoramic peepholes, capturing full-length porch views without panning. Furthermore, its ultra-short 0.1m Minimum Object Distance (M.O.D.) makes it perfect for Machine Vision robotic arms, automated optical inspection (AOI), and drone obstacle avoidance systems where close-up, wide-angle tracking is critical.
Device Compatibility List
- Sensor Compatibility: Optimized for 1/2.7″, 1/2.8″, and 1/3″ mainstream CMOS image sensors (e.g., Sony IMX series, OmniVision, Onsemi).
- Security & Smart Home: Direct fit for Hikvision/Dahua low-profile panoramic modules, Tuya IoT smart cameras, and Xiaomi AI video doorbells.
- Industrial & Robotic Systems: Compatible with Raspberry Pi HQ camera modules, Jetson Nano vision systems, and automated warehouse AGV navigation cameras.
- Mount Customization: Standard M12x0.5 thread interface; supports custom mechanical adapters, customized focal lengths, and IR-cut filter modifications upon request.
“Designed for Panoramic Security and Automotive AVM applications”
Frequently Asked Questions
Q: Does this 1.7mm M12 lens support day and night imaging?
A: Yes. While the lens features a fixed iris, it can be paired with an external IR-cut switcher to deliver sharp color imaging by day and clear infrared night vision.
Q: What does the 5G+1MG construction mean for image quality?
A: It consists of 5 multi-coated glass lenses and 1 molded glass element. This hybrid design maximizes light transmission (F2.0 aperture) and prevents focus shifting under extreme temperatures.
Q: Can this lens be used with non-M12 mounts like CS-mount?
A: No, this is natively a M12 Lens. However, you can easily use a mechanical M12-to-CS mount adapter if your camera housing supports the back focal length.
Q: Is the -118% distortion going to warp my images?
A: Yes, this is a native characteristic of ultra-wide Fisheye Lenses. The optical distortion can be easily calibrated and flattened via software/dewarping algorithms in your ISP.
Q: What is the Minimum Object Distance (M.O.D.) for this optical lens?
A: The M.O.D. is 0.1 meters (10cm). This allows industrial robots or scanning devices to capture sharp, clear 5MP images even when positioned very close to the target object.
Q: Do you support custom modifications for bulk OEM orders?
A: Absolutely. We provide tailoring for specific F.O.V. requirements, customized T.T.L. housings, AR/IR coating adjustments, and full compliance documentation for industrial projects.
