Description
This 1/2.3 inch 3mm M12 wide angle fixed focal lens is a 5MP high-definition industrial & CCTV optical lens optimized for miniature smart imaging devices. Featuring a super wide 104° field of view, ultra-low distortion below 1%, and professional IRCF infrared correction structure, this fixed iris lens delivers consistent clear imaging day and night. With a compact 20.9mm TTL design and 0.01m ultra-short minimum focusing distance, it perfectly fits space-limited smart security, home monitoring and micro machine vision equipment. As a high-performance low distortion wide angle M12 lens, it effectively solves edge distortion and narrow viewing angle issues of ordinary surveillance lenses.
Core Product Highlights
Super Wide Field of View Covers More Monitoring Area
104° diagonal wide FOV greatly expands monitoring coverage, eliminating blind spots for small cameras; ideal for compact devices that cannot install multiple lenses.
Ultra-Low Distortion Restores Real Scene Imaging
Strictly controlled distortion below -1%, far better than ordinary wide-angle lenses, avoids image stretching and edge warping for accurate video recording and vision recognition.
5MP HD &IRCF
Built-in IRCF infrared filter structure ensures synchronous clear imaging in daytime visible light and nighttime infrared environment, no blurry night vision.
Universal M12 Mount & High Device Compatibility
Standard M12x0.5 thread mount features plug-and-play installation, no modification needed, compatible with most mainstream miniature camera modules.
Industrial-Grade Stable Optical Quality
3G2P professional optical lens structure + fixed F4.0 aperture ensures stable light intake and long-term continuous operation without image quality decay.
Detailed Product Parameters
| Parameter Item | Technical Specification |
|---|---|
| Image Format | 1/2.3″ |
| Focal Length | 3mm |
| Field of View (FOV) | 104°(Diagonal) / 92°(Horizontal) / 75°(Vertical) |
| Resolution | 5 MP |
| Optical Distortion | ＜-1% |
| Aperture | F4.0 |
| Mount Type | M12×0.5 |
| Iris Type | Fixed |
| Minimum Object Distance (M.O.D.) | 0.01m |

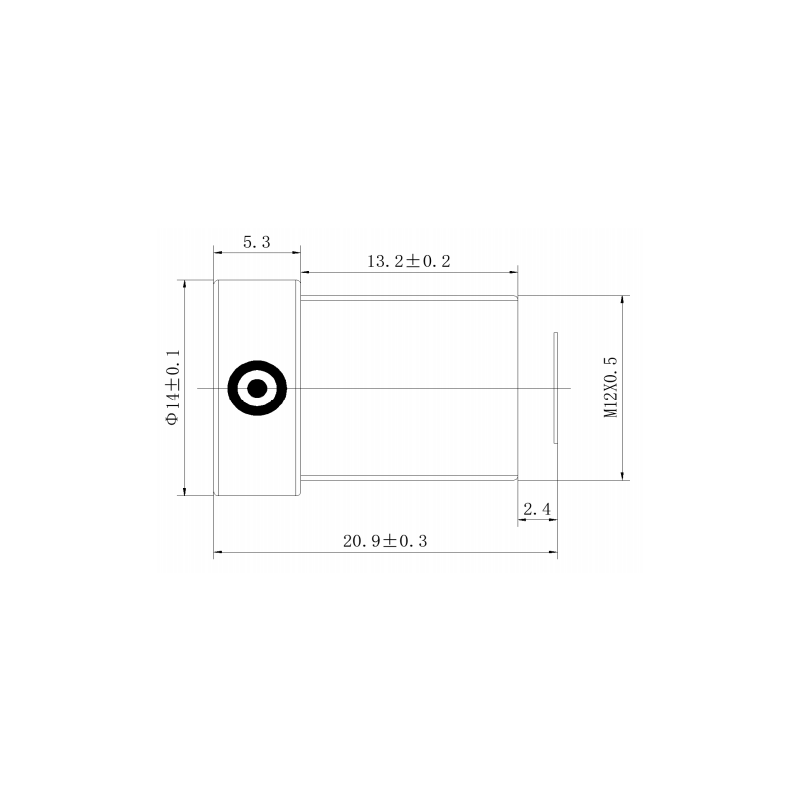

| Total Track Length (T.T.L.) | 20.9mm |
| Optical Construction | 3G2P+IRCF |
This product is RoHS certified, ISO9001 quality control certified, supports third-party testing, and complies with EU/domestic security equipment access standards, alleviating customer quality concerns.
Application Scenarios & Compatible Devices
Core Application Scenarios
This high-performance low distortion wide angle M12 lens is widely applied in home smart security systems, mini CCTV surveillance cameras, smart video doorbells, small vehicle auxiliary monitoring cameras, desktop intelligent monitoring equipment, and miniature industrial machine vision recognition devices. It is specially optimized for compact equipment with limited internal installation space, requiring wide viewing coverage and high-precision undistorted imaging. The ultra-short minimum focusing distance supports close-range shooting, adapting to indoor home monitoring, community safety monitoring and small industrial detection scenarios, greatly improving equipment application flexibility and monitoring comprehensiveness.
Compatible Devices List
This IRCF fixed focal lens is perfectly adapted to 1/2.3-inch mainstream CMOS image sensors, and also compatible with partial 1/2.8-inch and 1/3-inch camera modules. It matches mainstream smart IoT cameras, Tuya smart security cameras, mini industrial vision inspection modules, household video doorbell equipment and small vehicle monitoring modules on the market. It supports personalized optical parameter customization to meet diverse adaptation requirements of different industrial and civil imaging devices.
Designed for smart security & miniature industrial machine vision application.
FAQs
Is this lens suitable for night vision monitoring?
Yes. Equipped with IRCF infrared correction structure, it supports infrared night vision imaging and ensures clear day and night switching effect.
Does this wide-angle lens cause serious image distortion?
No. The lens is professionally optimized with optical distortion controlled below 1%, realizing ultra-low distortion straight-line imaging.
What mount type does this lens use?
It adopts standard M12x0.5 thread mount, the most universal mount for mini CCTV and machine vision cameras.
What is the minimum focusing distance?
The M.O.D is 0.01m, supporting ultra-close range clear shooting for close-distance monitoring and detection.
Is the aperture adjustable?
No, it is a fixed F4.0 aperture lens with stable light intake for consistent imaging effect.
