Description

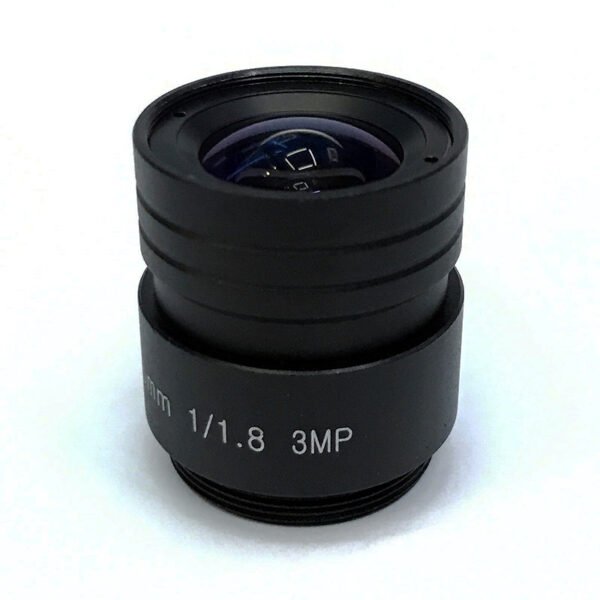

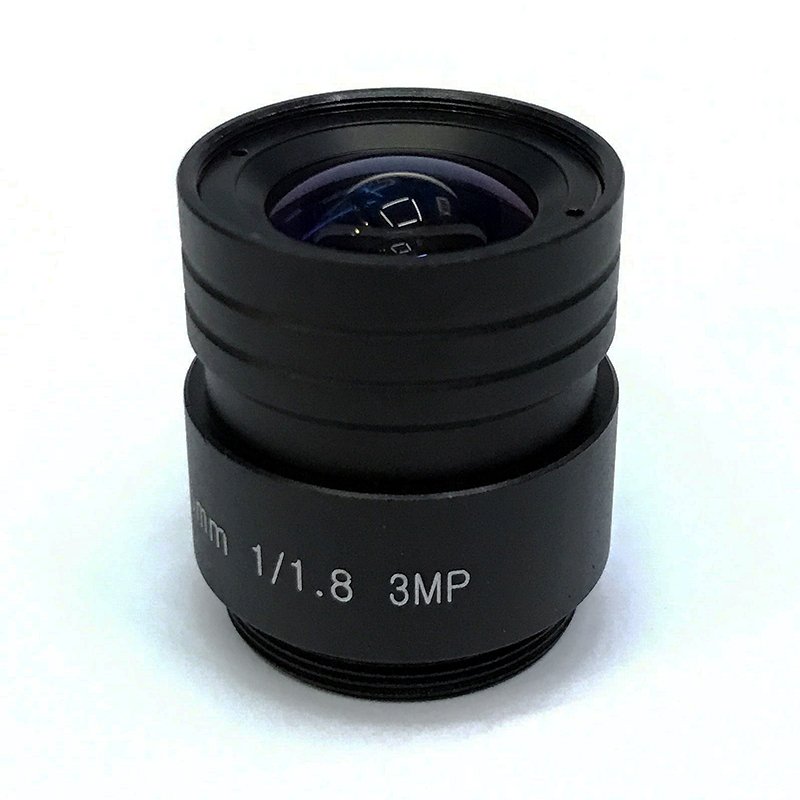

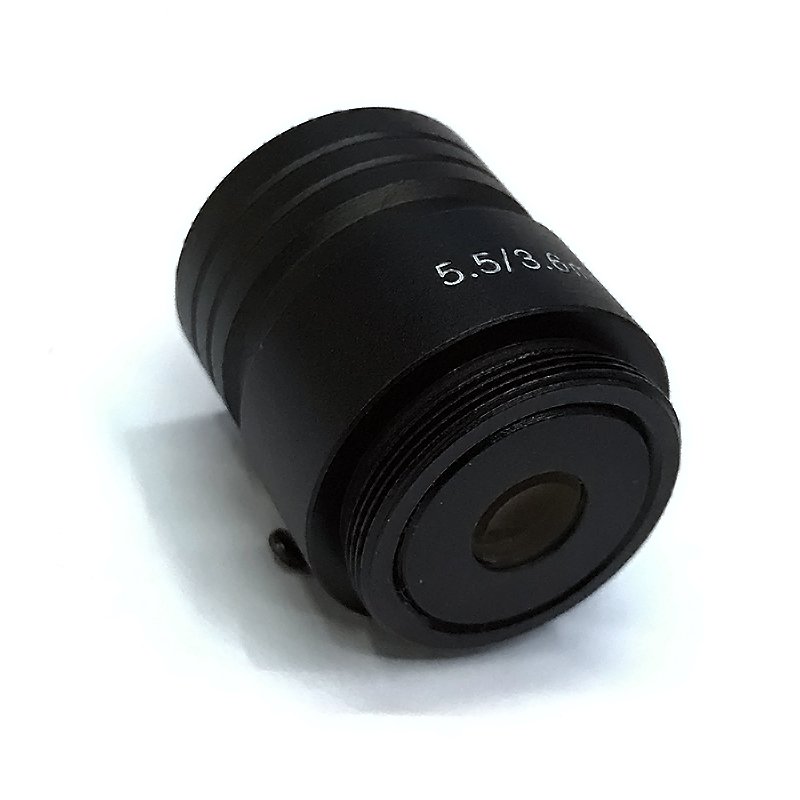

This premium 5.5mm CS-mount CCTV lens delivers high-performance 3MP resolution specifically optimized for wide-area coverage and high-throughput monitoring. Designed to support large 1/1.8″ image sensors, it features an ultra-bright F1.2 aperture that provides outstanding low-light imaging without reliance on digital amplification. Engineered as a robust fixed focal industrial lens, it combines an expansive 83° horizontal field of view with strict optical control, restricting geometric distortion to less than -7%. This ensures crisp, clear, and uniform edge-to-edge detailing across expansive surveillance zones and high-speed automation systems.
Product Highlights
- Expansive 115° Wide-Angle Coverage: The 5.5mm fixed focal length delivers a broad 83° horizontal and 115° diagonal FOV, allowing single-camera setups to monitor multi-lane traffic or massive warehouse floors without blind spots.
- Superior Large-Target 1/1.8″ Format: Fully optimized for high-end 1/1.8″ sensors, capturing more light and delivering higher pixel density, better dynamic range, and richer image detail than standard 1/3″ lenses.
- Ultra-Bright F1.2 Fixed Iris: The massive F1.2 aperture ensures maximum light transmission, drastically improving color accuracy and lowering image noise in pitch-black or unpredictable low-light conditions.
- Advanced Low-Distortion Control: Despite its wide-angle capabilities, the optical layout limits optical distortion to <-7%, preventing severe barrel curving and maintaining structural integrity for data-sensitive visual inspections.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/1.8″ (Compatible with 1/2″, 1/2.8″, 1/3″) |
| Focal Length | 5.5mm |
| Field of View (F.O.V.) | 115° (D) / 83° (H) / 60° (V) |
| Resolution | 3 Megapixel (3 MP) |
| Aperture | F1.2 |
| Distortion | <-7% |
| Mount Type | CS-Mount |
| Iris Type | Fixed |
| Focus Type | Manual |
| Zoom Type | Fixed |
| Back Focal Length (B.F.L.) | 6.95mm |
| Total Track Length (TTL) | 35.14mm |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This large-format wide angle lens is engineered for high-end monitoring environments requiring both an expansive view and maximum brightness. It serves as an excellent ITS lens for intelligent traffic systems, capturing up to three highway lanes simultaneously or managing comprehensive city intersections under challenging night conditions. In factory automation and commercial security, it excels at warehouse panoramic surveillance, large-scale assembly line inspection, and open parking lot tracking. With its low distortion (<-7%) and compact 35.14mm TTL, this FA lens delivers reliable spatial accuracy for robotic bin-picking and object positioning without requiring massive spatial clearance or aggressive digital software de-warping.
Compatible Device List
- Sensors: Perfect native fit for high-sensitivity 1/1.8″ CMOS sensors (e.g., Sony IMX178, IMX385) and backward compatible with 1/2″, 1/2.7″, and 1/3″ chips.
- High-End Security Cameras: Adapts flawlessly to 3MP/5MP CS-mount CCTV box cameras, low-light starlight network IP cameras, and facial-recognition gate enclosures.
- Industrial Hardwares: Seamlessly integrates with USB3.0, GigE, and CameraLink machine vision cameras used in automated factories for rapid layout validation.
- IoT & Robotic Modules: Fits into industrial smart cameras, smart city multi-sensor surveillance rigs, and automated guided vehicles (AGVs) using standard CS-mount receiver rings.
“Designed for large-format wide-area surveillance and high-throughput machine vision applications.”
Frequently Asked Questions
Q: Why does this lens perform better on a 1/1.8″ sensor compared to a 1/3″ sensor?
A: A 1/1.8″ sensor has a larger surface area. This 5.5mm wide angle lens is optically designed to project a larger image circle, allowing you to maximize the sensor’s full resolution, field of view, and low-light capabilities without vignetting or dark corners.
A: A 1/1.8″ sensor has a larger surface area. This 5.5mm wide angle lens is optically designed to project a larger image circle, allowing you to maximize the sensor’s full resolution, field of view, and low-light capabilities without vignetting or dark corners.
Q: What is the benefit of a fixed F1.2 iris over an adjustable manual iris lens?
A: A fixed F1.2 aperture optimizes internal lens space, minimizes physical moving parts, and locks the lens at its maximum light-gathering state. This ensures lower hardware failure rates in high-vibration industrial settings while guaranteeing maximum night-vision efficiency.
A: A fixed F1.2 aperture optimizes internal lens space, minimizes physical moving parts, and locks the lens at its maximum light-gathering state. This ensures lower hardware failure rates in high-vibration industrial settings while guaranteeing maximum night-vision efficiency.
Q: Will this 83° horizontal field of view cause extreme “fisheye” curving on the edges?
A: No. Standard fisheye lenses often feature distortion exceeding 30% to 50%. This professional machine vision lens utilizes precise optical engineering to hold distortion below -7%, ensuring straight structural lines stay relatively flat.
A: No. Standard fisheye lenses often feature distortion exceeding 30% to 50%. This professional machine vision lens utilizes precise optical engineering to hold distortion below -7%, ensuring straight structural lines stay relatively flat.
Q: Can I adjust the focus on this lens, or is it completely fixed?
A: While the focal length (5.5mm) and zoom are fixed, the focus itself is completely adjustable. It features a precise manual focus ring so you can pin-point clarity based on the exact distance to your target zone.
A: While the focal length (5.5mm) and zoom are fixed, the focus itself is completely adjustable. It features a precise manual focus ring so you can pin-point clarity based on the exact distance to your target zone.
Q: What are B.F.L. and TTL, and why do they matter for my system?
A: B.F.L. (Back Focal Length) is 6.95mm, which is the distance from the rear glass element to the sensor. TTL (Total Track Length) is 35.14mm, indicating the total compact length of the optical train. These metrics are crucial for custom embedding, ensuring the lens physically clears internal camera components.
A: B.F.L. (Back Focal Length) is 6.95mm, which is the distance from the rear glass element to the sensor. TTL (Total Track Length) is 35.14mm, indicating the total compact length of the optical train. These metrics are crucial for custom embedding, ensuring the lens physically clears internal camera components.
Q: Does this lens support infrared (IR) night vision application setups?
A: Yes. Combined with its wide F1.2 aperture, this lens collects ample infrared light. It is optimized to work smoothly with day/night camera modules that utilize IR cut filters for 24/7 security.
A: Yes. Combined with its wide F1.2 aperture, this lens collects ample infrared light. It is optimized to work smoothly with day/night camera modules that utilize IR cut filters for 24/7 security.
