Description

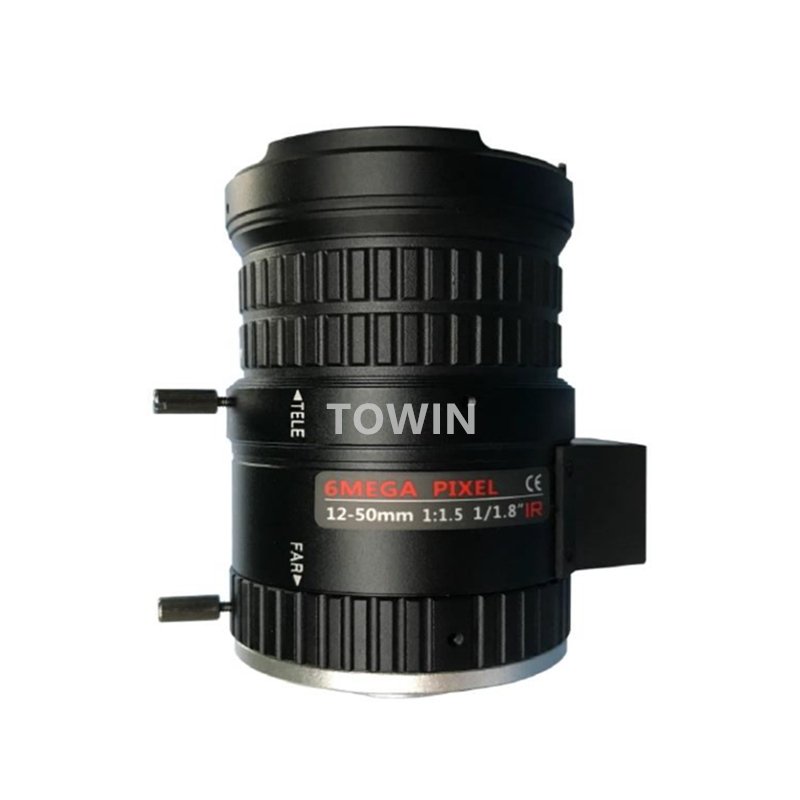

This 1/1.8″ 6MP CS-mount zoom lens is engineered for high-definition day and night surveillance & industrial imaging. Featuring 12-50mm adjustable focal length, P-Iris control and IR correction, it delivers stable, clear imaging across long-distance monitoring and industrial visual capture. Built with compact optical structure and reliable manual focus & zoom design, this CCTV lens and industrial lens balances flexibility and cost performance for diverse commercial and industrial deployment demands.
Core Highlights
- Flexible 12-50mm zoom range, covers wide to narrow FOV for multi-scene monitoring
- 6MP high resolution & F1.5 large aperture, boosts low-light imaging clarity
- Professional IR corrected design, ensures consistent day&night infrared imaging
- Standard CS mount & 0.3m MOD, easy installation and close-range shooting
- Compact industrial-grade structure, durable for long-term 24/7 working
Detailed Specifications
| Item | Parameter |
|---|---|
| Image Format | 1/1.8″ |
| Focal Length | 12-50mm |
| Horizontal FOV | 33°~8° |
| Resolution | 6MP |
| Aperture | F1.5 |
| Distortion | ＜-18% |
| Mount | CS |
| B.F.L. | 12.3~12.7mm |
| Iris Type | P-Iris |
| Focus Mode | Manual |
| Zoom Mode | Manual |
| M.O.D. | 0.3m |
| Optical Feature | IR Corrected |
This product complies with RoHS certification and ISO9001 quality control standards, supports third-party professional testing, and meets EU and domestic security equipment access standards to eliminate global customers’ quality and compliance concerns.
Application Scenarios & Compatible Devices
Core Application Scenarios
This multi-functional ITS lens and IR corrected lens is specially designed for road traffic monitoring, community perimeter security, factory workshop industrial imaging, commercial building long-distance surveillance and outdoor unattended monitoring. With adjustable viewing angle and excellent low-light adaptability, it perfectly solves the pain points of fixed-focus lens’s single monitoring range and poor night imaging. It stably adapts to complex environments such as high temperature, dust and weak light, realizing long-distance detail capture and regional wide-area monitoring, greatly reducing later lens replacement and equipment transformation costs.
Compatible Device List
Fully compatible with 1/1.8 inch mainstream CMOS sensors, matching CS-mount security cameras, industrial visual cameras, ITS traffic capture equipment, factory automation monitoring modules and commercial surveillance integrated machines. The manual adjustment structure supports on-site rapid focal length and focus fine-tuning, and can cooperate with mainstream monitoring management systems to complete high-definition video collection.
Designed for security and industrial imaging application.
FAQs
Q1: Is this lens suitable for night monitoring?
A1: Yes. It adopts professional IR corrected optical design, which can effectively restore true colors in daytime and enhance infrared imaging effect at night, meeting 24-hour monitoring needs.
Q2: What sensor size does this CS mount lens support?
A2: It is optimized for 1/1.8″ image format, and also compatible with smaller size sensors for adaptive cropping imaging.
Q3: Can I adjust the viewing angle manually?
A3: Absolutely. It supports manual zoom and manual focus, allowing flexible adjustment of horizontal FOV from 8° to 33° on site.
Q4: What is the minimum focusing distance?
A4: The minimum object distance is 0.3m, which supports clear close-up shooting and short-range industrial visual detection.
