Description
Capture high-definition clarity across both day and night surveillance with our 1/2.3″ 10MP 4.9mm M12 IR Corrected Lens. Purpose-built for security networks, intelligent traffic systems (ITS), and rugged automotive imaging, this commercial-grade optical component fully supports 10-Megapixel sensor resolutions. Delivering an expansive 90° diagonal wide-angle field of view alongside advanced IR-corrected day/night optimization, it maintains crisp focus from visible light to near-infrared spectrums. Featuring a bright F2.2 aperture and standard M12x0.5 thread, it provides the perfect upgrade path for high-performance security domes, smart traffic cameras, and mobile fleet tracking hardware.
Key Features & Product Highlights
- 10MP High-Definition Clarity: Engineered for 1/2.3″ high-density CMOS sensors to deliver ultra-sharp imaging and reliable pixel resolving power.
- IR-Corrected Day & Night Focus: Eliminates focus drift caused by light wavelength shifts, ensuring crystal-clear images under daytime sunlight and nighttime IR illumination.
- 90° Wide-Angle Coverage: Offers a sweeping 90° diagonal field of view, maximizing monitoring area and reducing blind spots in large premises.
- Bright F2.2 Large Aperture: Maximizes light throughput to the image sensor, vastly improving low-light visibility and nighttime surveillance performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.3″ |
| Focal Length | 4.9mm |
| Field of View (F.O.V.) | 90°(D) / 73°(H) / 61°(V) |
| Resolution | 10 Megapixel (10 MP) |
| TV Distortion | < -8% (Barrel Distortion) |
| Aperture | F2.2 |
| Mount Type | M12 × 0.5 |
| Iris Type | Fixed |
| M.O.D. (Minimum Object Distance) | 0.3m |

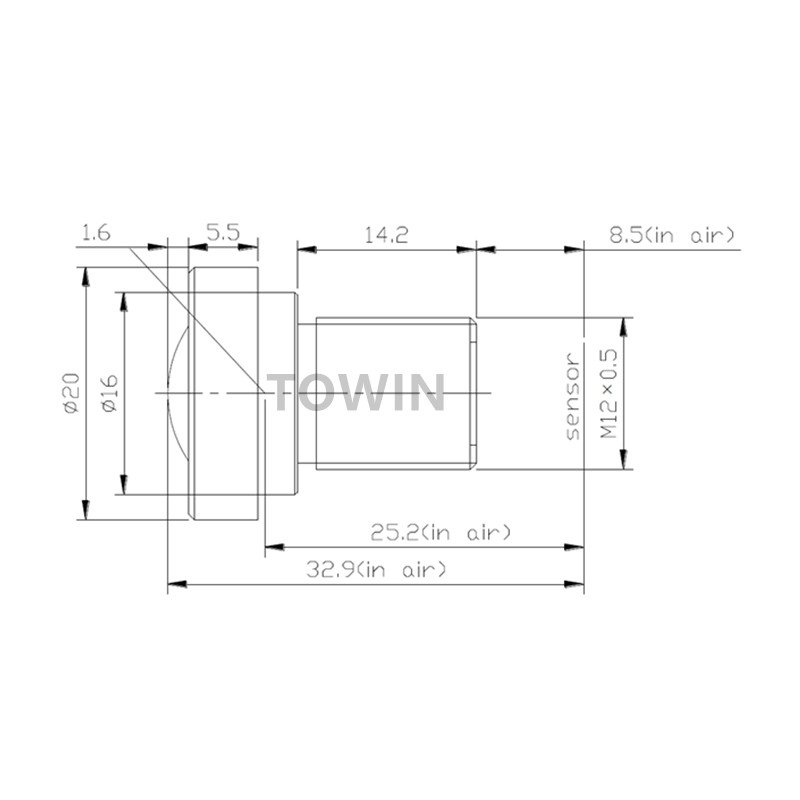

| T.T.L. (Total Track Length) | 32.9mm |
| Dimensions | Φ20 × 24.4mm |
| Optical Coating Optimization | IR Corrected |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This 10MP IR corrected fixed focal lens is optimized for heavy-duty security tracking and transportation safety. It serves as an exceptional choice for Intelligent Traffic Systems (ITS), including electronic toll collection (ETC) checkpoints, speed enforcement systems, and license plate recognition (LPR) gates. The wide 90° horizontal frame captures multi-lane traffic or expansive public areas efficiently. Its reliable day/night infrared correction makes it highly dependable for commercial CCTV security domes, outdoor parking lot monitoring, industrial perimeter safety networks, and automotive fleet tracking dash cams operating under 24/7 variable outdoor lighting.
Compatible Device List
- Sensors: Optimized for premium 1/2.3″ and 1/2.5″ high-resolution sensors, seamlessly integrating with Sony IMX series, Onsemi, and OmniVision chips.
- CCTV Cameras: Drop-in upgrade for high-end IP bullet cameras, outdoor dome monitors, and multi-sensor panoramic enclosures.
- Transportation Hardware: Tailored for smart traffic license plate cameras, commercial vehicle backup cameras, and toll station gate monitoring modules.
- OEM Customization: Available with customized anti-vibration structures or alternative 850nm/940nm specific bandpass filters for advanced night vision arrays.
“Designed for CCTV Security Surveillance, Intelligent Traffic Systems, and Day/Night Imaging applications.”
Frequently Asked Questions
Q: What does “IR Corrected” mean and why is it beneficial?
A: Visible light and infrared light focus at different points on a sensor due to wavelength variations. An IR Corrected Lens uses specialized optical glass to bring both light types into the exact same focal plane, preventing blurry images when your camera switches to nighttime IR mode.
Q: Is the <-8% TV distortion suitable for security applications?
A: Yes. In surveillance and traffic management, wide coverage is prioritized over zero distortion. A profile of <-8% barrel distortion is standard for a 90° wide-angle layout, allowing the lens to capture broad, multi-lane road views or wide entryways.
Q: Can I use this M12 lens on a 1/3″ security sensor module?
A: Absolutely. This lens is fully backward-compatible with smaller formats such as 1/2.7″, 1/2.8″, and 1/3″ sensors. Using a smaller sensor will slightly crop the field of view, but you will achieve outstanding center clarity with absolutely zero corner vignetting.
Q: How does the F2.2 aperture improve performance at night?
A: An F2.2 aperture is quite large, meaning it allows significantly more ambient light to hit the CMOS sensor compared to restrictive F3.5 or F4.5 lenses. This reduces digital noise, speeds up shutter response, and delivers cleaner footage in low-light environments.
Q: Does this lens include a built-in IR-cut filter on the barrel?
A: To maximize day/night surveillance utility, this lens is designed without a permanent IR-cut block, allowing near-infrared light to pass through. It is highly recommended to pair this lens with a motor-driven IRC switcher on your camera board.
Q: What is the Minimum Object Distance (M.O.D.) for this model?
A: The M.O.D. is 0.3 meters (30 cm). This ensures that everything from 30 cm out to infinity remains beautifully sharp and detailed, making it perfect for tracking passing vehicles or pedestrians at varying distances.
