Description

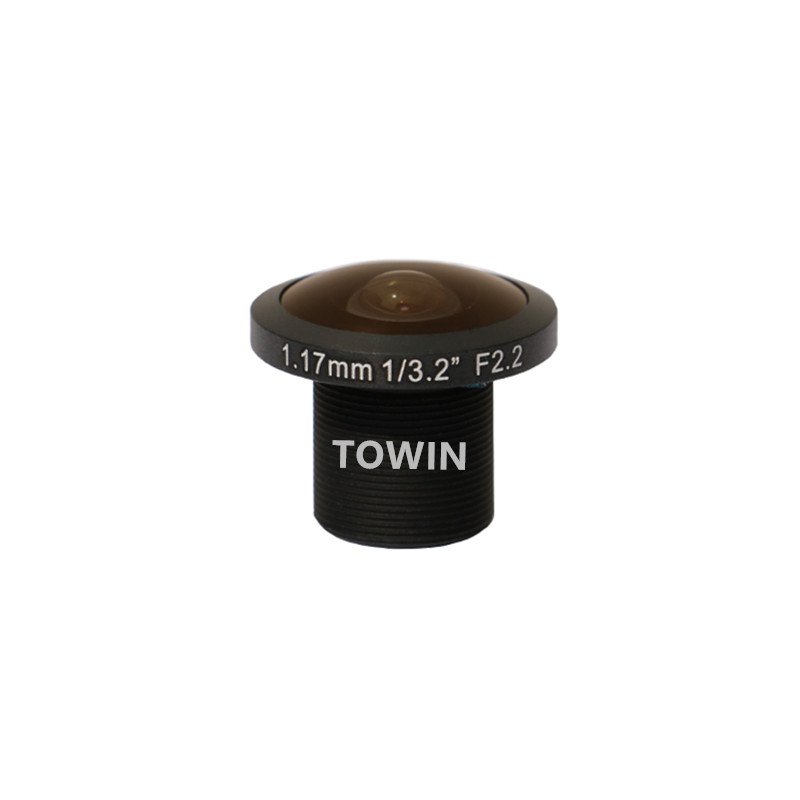

This 8MP 220° fisheye M12 lens features an ultra-short 1.17mm focal length and full 220° diagonal, horizontal and vertical field of view. Equipped with F2.2 large aperture and IR correction design, it delivers high-definition imaging, strong light intake and outstanding infrared night vision performance. Built with standard M12x0.5 mount, fixed iris and 0.1m minimum object distance, it perfectly fits compact embedded devices, industrial vision systems and panoramic security monitoring equipment, balancing wide coverage and clear image quality.
Key Product Highlights
Field of View/Focal Length Advantages
220° full-view coverage eliminates blind spots, ultra-short 1.17mm focal length fits narrow installation space
Performance
8Megapixel high resolution restores fine details, F2.2 aperture ensures stable imaging in low-light environments
Compatibility
Standard M12x0.5 mount supports mainstream CMOS sensors, plug-and-play without bracket modification
Quality Assurance
IR corrected design optimizes night vision effect, strict optical parameter calibration guarantees stable mass consistency

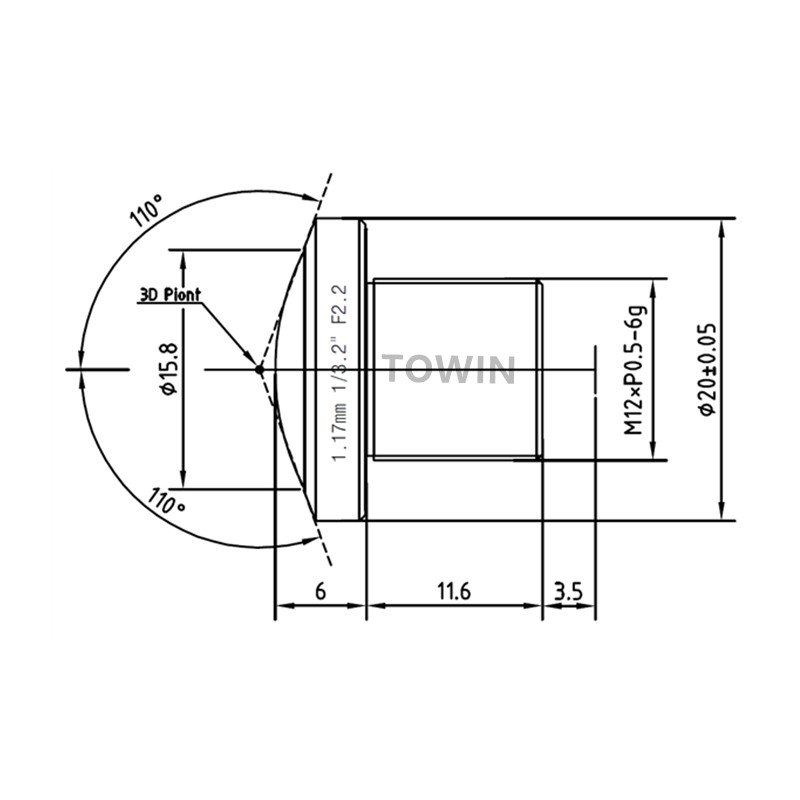

Detailed Product Parameter
| Parameter Item | Specification |
|---|---|
| Image Size | Φ3.2mm |
| Focal Length | 1.17mm |
| F.O.V | 220°(D) / 220°(H) / 220°(V) |
| Resolution | 8Megapixel |
| Optical Distortion | <-145% |
| Aperture | F2.2 |
| Mount | M12x0.5 |
| Iris | Fixed |
| M.O.D | 0.1m |
| T.T.L | 21.1mm |
| M.B.F.L | 3.5mm |
| IR Function | IR Corrected |
This product is RoHS certified, ISO9001 quality control certified, supports third-party testing, and complies with EU/domestic security equipment access standards, alleviating customer quality concerns.
Product Application Scenarios and Compatible Devices
Core Application Scenarios
This 220° fisheye M12 lens is widely applied in panoramic CCTV surveillance, automotive surround view monitoring, smart video doorbells, IoT smart home cameras, industrial machine vision inspection, miniature drone panoramic shooting and endoscope auxiliary imaging. It perfectly solves the pain point of limited installation space and insufficient monitoring coverage of conventional lenses. The 0.1m short minimum object distance adapts to close-range industrial detection, while IR correction ensures clear day and night imaging, suitable for indoor and outdoor all-weather working environments with high coverage and high-definition requirements.
Compatible Devices List
Compatible with mainstream 1/2.8, 1/3-inch CMOS image sensors in the market. Adapted to smart video doorbell modules, panoramic security cameras, vehicle rearview & surround view camera modules, industrial vision inspection equipment, miniature UAV aerial cameras and small IoT monitoring devices. It supports secondary development and customized adaptation for smart hardware manufacturers, with universal M12 mount structure that matches most mainstream camera module assemblies on the market.
Designed for panoramic monitoring, industrial vision and smart home imaging application.
FAQs
Q: What makes this lens different from ordinary wide-angle lenses?
It provides 220° full-view fisheye coverage without monitoring blind spots, with shorter focal length and smaller volume for narrow space installation.
Q: Does this lens support night vision imaging?
Yes, it adopts IR corrected design, effectively optimizing infrared light transmission and delivering clear night vision performance.
Q: What mount type does this lens use?
Standard M12x0.5 thread mount, compatible with most M12 interface camera modules.
Q: What is the minimum focusing distance of the lens?
The minimum object distance is 0.1m, ideal for close-range industrial detection and short-distance monitoring scenarios.
Q: Is this 8MP lens suitable for mass industrial deployment?
It has passed ISO9001 and RoHS certification, with stable optical parameters and consistent batch quality, fully supporting large-scale industrial and commercial installation.
