Description
Maximize your visual monitoring capabilities with our premium 4 Megapixel 0.9mm M12 Fisheye Lens. Specially optimized for the OV4689 sensor, this ultra-wide-angle lens delivers an unparalleled 220° panoramic field of view without blind spots. Featuring a robust 6G+IR cut optical design and a compact M12 mount, it provides crystal-clear, high-resolution imaging for next-generation security, automotive, and industrial imaging systems.
Product Advantages & Core Features
- 220° Blind-Spot-Free Panorama: Eliminates scanning blind spots by capturing full 220° horizontal and vertical views, drastically reducing the number of cameras needed for full area coverage.
- 4MP High-Definition Clarity: Engineered with 4-Megapixel resolution to deliver crisp, data-rich images that meet the stringent requirements of modern AI facial recognition and license plate tracking.
- Low-Light Performance: The large F2.2 fixed aperture maximizes light throughput, ensuring bright, low-noise video capture even in challenging dawn, dusk, or indoor low-light environments.
- Ultra-Short 0.1m Close Focus: Supports precise close-range imaging with a Minimum Object Distance (M.O.D.) of just 0.1m, preventing blur when objects get close to the lens.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Image Format | 1/3″ Φ2.7mm |
| Focal Length | 0.9mm |
| F.O.V. (Sensor OV4689) | 220° (D) / 220° (H) / 220° (V) |
| Resolution | 4 Megapixel |
| Optical Distortion | <-169% |
| Aperture | F2.2 |
| Mount | M12x0.5 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.1m |

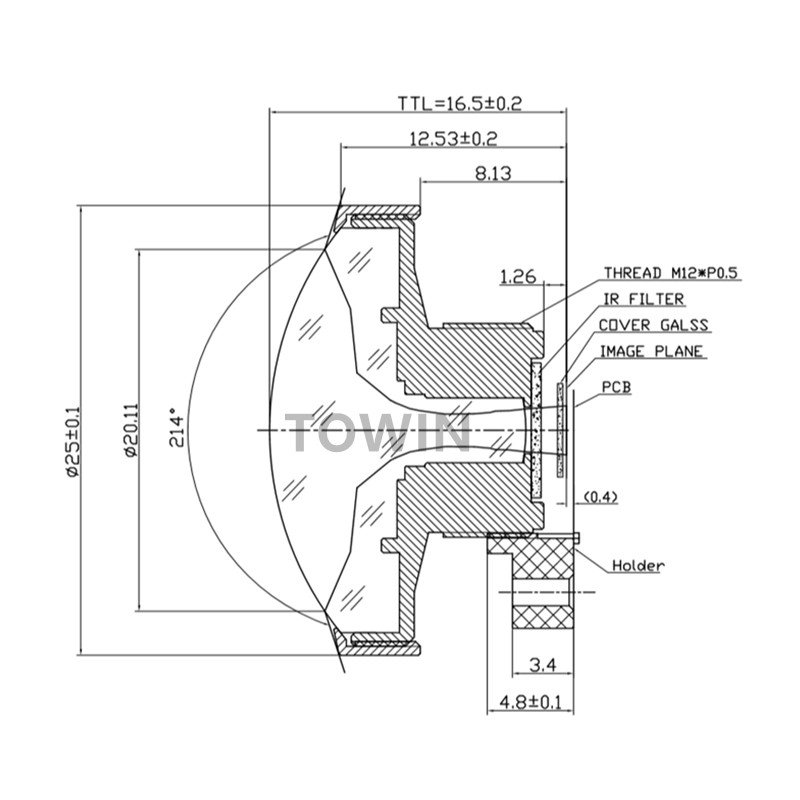

| T.T.L. (Total Track Length) | 16.50mm |
| M. B.F.L. (Mechanical Back Focal Length) | 1.26mm |
| Lens Components | 6G + IR cut |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatibility
Comprehensive Application Scenarios
This 220-degree wide angle M12 lens is purpose-built for applications requiring an expansive field of view within ultra-compact installation spaces. It excels in Automotive Around View Monitor (AVM) 360° systems, smart video doorbells, high-density CCTV panoramic surveillance, and drone/UAV aerial imaging. Additionally, its 6G all-glass structure withstands the thermal fluctuations common in outdoor environments, making it ideal for smart parking enforcement, industrial robotic vision, and automated production line inspections where wide-angle alignment is critical.
Compatible Device Checklist
- Supported Sensors: Fully optimized for OmniVision OV4689, compatible with mainstream 1/3″ and 1/2.8″ CMOS sensors.
- Security Hardware: Seamlessly fits Hikvision, Dahua, and Tuya Smart IoT panoramic dome cameras without bracket modification.
- Automotive Tech: Integrates smoothly into vehicle dashcams, electronic rearview mirrors, and backup camera housings.
- Industrial Automation: Adaptable to specialized machine vision modules, AMR (Autonomous Mobile Robots), and AGV navigation systems.
“Designed for panoramic security surveillance and automotive surround-view applications.”
Frequently Asked Questions
Q: Can this 0.9mm lens be used with sensors larger or smaller than 1/3″?
A: It is perfectly optimized for 1/3″ sensors like the OV4689. Using it on a smaller sensor (e.g., 1/4″) will crop the field of view below 220°, while a larger sensor may cause dark corners (vignetting).
Q: Does this M12 fisheye lens feature a built-in IR cut filter?
A: Yes. The lens construction includes a 6G+IR cut filter, which effectively blocks infrared light during the day to prevent color casting, ensuring accurate color reproduction.
Q: Is the distortion profile acceptable for standard security use?
A: The lens has an optical distortion of <-169%, creating the classic “fisheye” effect. For security and AVM applications, this distortion is easily corrected via camera software dewarping algorithms to achieve a natural panoramic view.
Q: Can I adjust the aperture or focal length on this model?
A: No, this is a Fixed Focal Lens with a fixed F2.2 aperture. It is engineered this way to maintain stability, high vibration resistance, and a compact form factor.
Q: Does this lens support outdoor use in extreme weather?
A: Yes. Built with a 6G (six layers of glass) configuration and housing that meets ISO9001 standards, it offers excellent thermal stability compared to plastic lenses, preventing focus shift under direct sunlight or cold conditions.
Q: What is the benefit of the 0.1m M.O.D. parameter?
A: The Minimum Object Distance of 0.1 meters ensures that objects as close as 10 cm to the lens remain in sharp focus. This is crucial for video doorbells and industrial robotic arms tracking close-range items.
