16MP 3.0mm M12 Wide Angle Fisheye Lens
This premium 16MP 3.0mm M12 lens is engineered for high-end imaging applications requiring an ultra-wide field of view and uncompromising image clarity. Featuring a rugged 5G1M+IRCF optical structure and a fast F2.5 aperture, this fixed focal lens delivers exceptional 16-megapixel resolution across the entire frame. Whether you are designing next-generation drone & UAV lenses, expanding automotive lens capabilities, or upgrading CCTV lens infrastructure, this compact M12 wide angle lens provides the perfect balance of panoramic coverage, durability, and optical precision.
Key Highlights
- 16MP Ultra-High Resolution: Captures pristine, distortion-optimized 16-megapixel details, eliminating the pixelation common in standard CCTV lenses.
- 150° Expansive Fisheye FOV: Eliminates blind spots completely with a massive 150-degree diagonal field of view, ideal for panoramic surveillance and aerial mapping.
- Compact M12x0.5 Mount: Seamlessly integrates into space-constrained systems without adding unnecessary weight, making it the top choice for drone & UAV lenses.
- 5G1M+IRCF Optical Structure: Built with 5 premium glass elements, 1 aspheric element, and an integrated IR-cut filter to suppress stray light and deliver vivid, true-to-life colors.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Image Format | Max Φ8.0mm |
| Focal Length | 3.0mm |
| F.O.V. (1/2.3″) | 150° (D) / 123° (H) / 93° (V) |
| Resolution | 16 Megapixel |
| Optical Distortion | < 63% |
| Aperture | F2.5 |
| Mount | M12 x 0.5 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.1m |

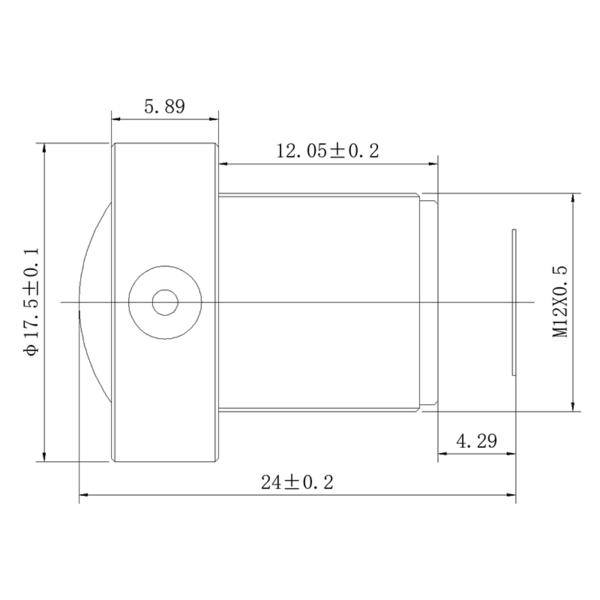

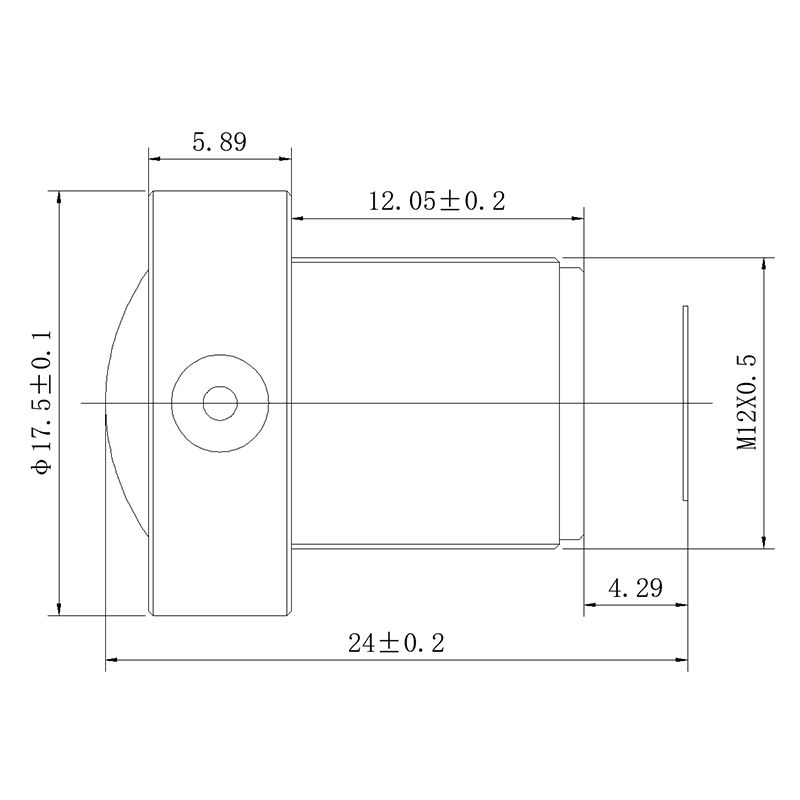

| T.T.L. (Total Track Length) | 24mm |
| Lens Structure | 5G1M + IRCF (5 Glass + 1 Monolithic + IR Cut Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatibility
Core Applications
This professional-grade M12 fisheye lens is purpose-built for environments requiring expansive spatial awareness and micro-space installation. It excels as an automotive lens for 360-degree around-view monitoring (AVM), electronic rearview mirrors, and advanced driver-assistance systems (ADAS) where capturing peripheral data is safety-critical. Additionally, its lightweight profile makes it an excellent choice for drone & UAV lenses used in agricultural mapping, structural inspection, and autonomous navigation. In smart city frameworks, it serves as a high-performance CCTV lens for wide-area intersection monitoring, retail analytics, and smart video doorbells, delivering crisp imaging even at a close focus distance of 0.1 meters.
Compatible Equipment List
- Sensors: Fully optimized for 1/2.3″ format CMOS sensors and backward compatible with 1/2.5″, 1/2.7″, and 1/3″ mainstream sensors (e.g., Sony IMX series, OmniVision).
- UAV & Action Cameras: Directly compatible with DJI custom payloads, GoPro-style action camera sensor platforms, and open-source drone optical modules.
- Security & IoT Platforms: Seamlessly plugs into Hikvision, Dahua, Tuya Smart IoT modules, and customized IP camera mainboards without mechanical modification.
- Industrial Vision: Supports AI edge-computing boards, Raspberry Pi HQ camera modules, and compact machine vision smart cameras.
“Designed for panoramic security, autonomous navigation, and smart automotive vision applications.”
Frequently Asked Questions
Q: Can this 16MP M12 lens be used on smaller sensor sizes like 1/2.7″ or 1/3″?
A: Yes, it is fully backward compatible. When used with smaller sensors, the lens will function perfectly, though the final Field of View (FOV) will narrow slightly based on the sensor’s crop factor.
Q: Does this wide angle lens include an IR-cut filter?
A: Yes, the lens features a built-in 5G1M+IRCF structure, which includes an integrated Infrared Cut Filter (IRCF) to block infrared light during daylight, ensuring accurate color reproduction.
Q: Is the focal length adjustable on this specific model?
A: No, this is a fixed focal lens with a set focal length of 3.0mm. Focus can be calibrated during installation by screwing the M12 mount deeper or shallower into your camera’s lens holder.
Q: What does “< 63% distortion” mean for a fisheye lens?
A: For an ultra-wide fisheye lens with a 150° field of view, optical distortion is natural. A metric of < 63% indicates controlled f-theta distortion, allowing standard de-warping algorithms to easily straighten the image via software.
Q: Is this lens rugged enough to be used as an outdoor automotive lens or on a UAV?
A: Absolutely. The all-glass and metal design, combined with its compliance with ISO9001 and RoHS standards, ensures high thermal stability and shock resistance for harsh outdoor and high-vibration environments.
Q: Can I customize the mount or the IR filter coating for specialized industrial projects?
A: Yes, we provide OEM/ODM customization services. We can adjust the IR filter wavelength, modify the mechanical barrels, or tailor the optical performance to match your specific hardware requirements.
