Wide Angle Lens – S02512512524F

Description

1/2.5″ 2.5mm 5MP F2.4 M12 Ultra-Wide Angle Fisheye Lens

Unlock expansive full-panoramic clarity with our professional 1/2.5″ 5MP 2.5mm M12 ultra-wide angle fisheye lens. Meticulously engineered for high-density 5-megapixel (2K Ultra HD) image sensors, this high-performance lens captures a sweeping 160° diagonal field of view to guarantee comprehensive scene awareness. Featuring an F2.4 aperture and an advanced 6G+IRCF (6 All-Glass Elements + Infrared Cut Filter) optical structure, it delivers razor-sharp resolution and pristine contrast while remaining completely immune to heat-induced focus drift. With its compact form factor and short 0.2m Minimum Object Distance, it stands as the premier optical choice for panoramic surveillance, automotive intelligent vision, and compact AI hardware requiring zero blind spots.

Key Product Highlights

• 160° Sweeping Panoramic View: Delivers an immersive panoramic field of view (125°H / 90°V) on 1/2.5″ sensors, comprehensively eliminating critical visual blind spots with a single camera module.
• 5MP Ultra-HD Resolving Power: Precision-calibrated optics perfectly resolve fine textures on 5-megapixel sensor matrices, providing flawless edge-to-edge definition for deep-learning analytics.
• Premium 6G All-Glass Elements: Built entirely with 6 precision layers of optical glass, ensuring maximum light transmission and total immunity to thermal focus drift in harsh outdoor environments.
• Optimized Panoramic Distortion: Highly refined optical engineering keeps geometric distortion at <-74%, capturing a vast hemispherical overview that can be efficiently flattened via standard dewarping algorithms.

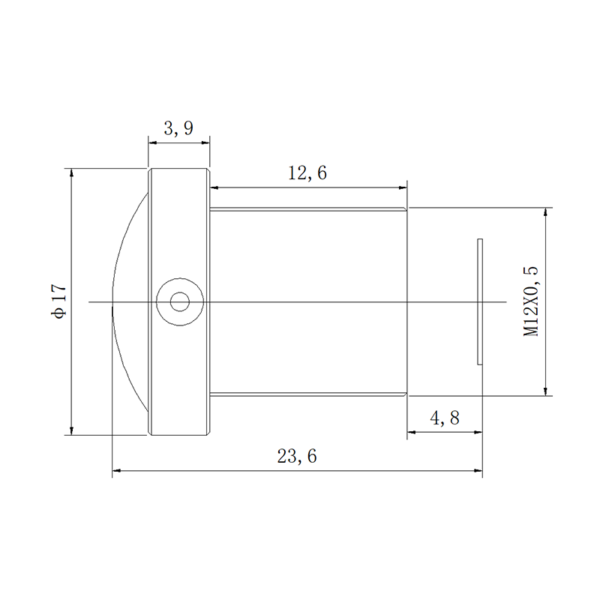

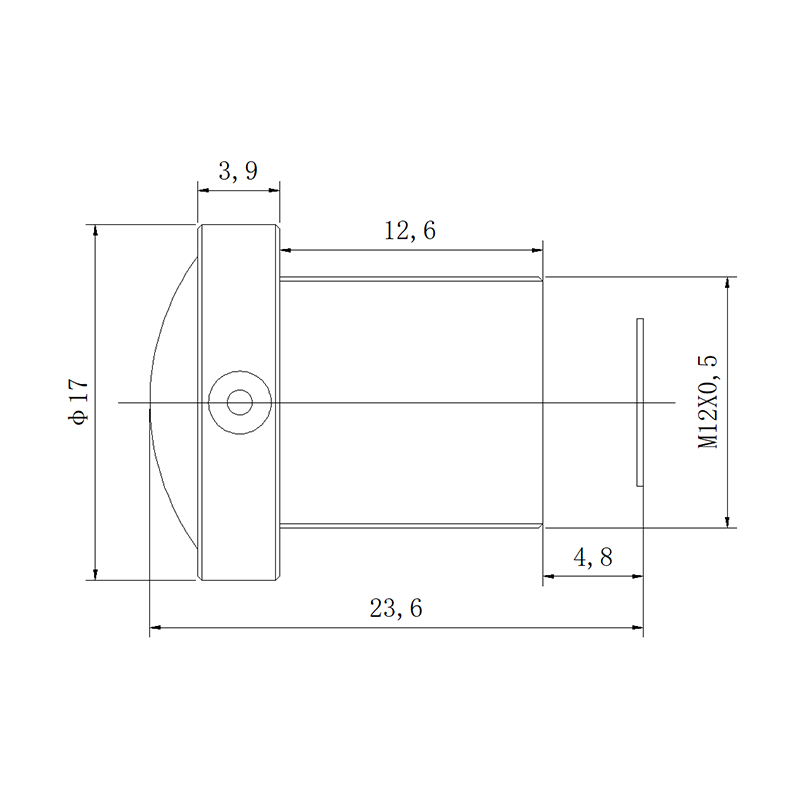

• Standard M12 Mechanical Mount: Classic M12x0.5 interface with a 5.3mm Back Focal Length (B.F.L.), enabling robust, seamless, and low-profile hardware integration into tight spatial footprints.

Technical Specifications

This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.

Applications & Device Compatibility

Core Application Scenarios

This 5MP M12 fisheye lens is purpose-built for visual hardware applications requiring high 2K data density paired with a sweeping panoramic overview and durable optical stability. It serves as an ideal optical component for automotive 360° surround-view monitoring systems (AVM), heavy machinery blind-spot systems, and smart fleet dashcams where capturing multiple lanes and managing extreme temperature fluctuations is critical. Thanks to its rugged 6G all-glass structure and 160-degree full-view framing, it excels within commercial mapping drones, UAV navigation networks, and autonomous AGV robotics for seamless real-time obstacle avoidance. Furthermore, it delivers top-tier performance in commercial 360° ceiling-mounted panorama IP dome cameras, premium smart home video doorbells, and intelligent retail analytics platforms.

Compatible Device List

• Sensors: Optimized for large 1/2.5″ high-resolution CMOS sensor arrays (e.g., Sony, OmniVision, Onsemi series) and fully backward adaptive to 1/2.7″, 1/2.8″, and 1/3″ sensor formats.
• Automotive Tech: Seamlessly integrates into car DVR recorders, heavy-duty truck telematics boxes, electronic side mirrors, and smart driving assistance (ADAS) hardware.
• Drones & Robotics: Fits professional FPV quadcopter camera modules, autonomous mobile robots (AMRs), warehouse sorting AGVs, and industrial drone payloads.
• Surveillance Platforms: Fits enterprise high-definition network camera modules, 360° panoramic indoor dome cameras, and premium smart home IoT doorbells.

“Designed for panoramic 360° surveillance and full-view automotive vision applications.”

Frequently Asked Questions

• Q: What are the main benefits of the 6G all-glass structure on this fisheye lens?A: All-glass optics maximize light throughput and resist superficial scratches. More importantly, they prevent “thermal drift” (de-focusing) when camera modules run continuously or are deployed outdoors under direct summer sun exposure, ensuring a stable focal plane from -20℃ to +85℃.
• Q: How does the <-74% distortion value affect my vision system data?A: This geometric distortion is a natural optical characteristic of extreme 160° wide-angle lenses, allowing them to map a huge dome-like environment onto a flat sensor. In practical use, this barrel-shaped image is typically flattened and corrected in real-time using backend software or SDK dewarping algorithms.
• Q: Can this 1/2.5″ lens fit smaller image sensors like 1/3″?A: Yes, absolutely. With its large 1/2.5″ format design, it easily covers smaller sensors (like 1/2.8″ or 1/3″). The field of view will crop naturally according to the sensor size, but the video will benefit from outstanding edge-to-edge sharpness.
• Q: Does this lens include an integrated filter for daytime color precision?A: Yes, it features a built-in fixed IR cut filter (IRCF) that accurately filters out ambient infrared wavelengths during daytime shooting, preventing color washing and ensuring vibrant, true-to-life images with zero pink tinting.
• Q: How is the manual focus configured on this fixed focal M12 lens?A: Focus is adjusted manually during your camera module’s assembly phase. The operator screws the lens into the M12 thread block while monitoring a live reference screen. Once peak sharpness at your target working distance is reached, it is permanently locked using a thread-locking compound or optical adhesive.
