Description
Unlock precise, high-definition industrial imaging with our premium 12mm 5MP M12 Low Distortion Lens. Engineered specifically for demanding factory automation (FA) and machine vision environments, this compact lens supports large image formats up to 1/1.8″. It delivers an ultra-sharp 5-megapixel resolution with a fixed F5.6 aperture, ensuring optimal depth of field and consistent exposure. Featuring an advanced 6G+IRF optical construction, it eliminates geometric warping with an impressive distortion rate of less than -1.5%. This makes it the perfect choice for high-accuracy inspection, automated sorting, and space-constrained industrial camera systems.
Key Product Highlights
12mm Narrow-Angle Telephoto Precision
- Narrow 33° horizontal field of view captures intricate details from a distance.
- 12mm fixed focal length eliminates the need for recalibration during operation.
- Ideal for targeted part inspection and precise defect detection.
Crystal-Clear 5MP Resolution with Ultra-Low Distortion
- High-density 5-megapixel optical performance ensures crisp edge-to-edge sharpness.
- Advanced low distortion engineering keeps geometric warping under -1.5%.
- Maintains superior measurement accuracy for industrial metrology applications.
Universal S-Mount Integration and High Relative Illumination
- Standard M12x0.5 threaded mount guarantees seamless compatibility with industrial board cameras.
- High relative illumination exceeding 82.5% prevents corner vignetting and dark edges.
- Compact Φ14×11.40mm dimensions fit easily into miniature vision systems.
Certified Industrial Durability
- Rugged 6-glass and IR filter (6G+IRF) construction withstands harsh factory environments.
- Fixed iris design prevents accidental aperture shifting caused by machine vibrations.
- Guarantees long-term optical alignment and stable performance.
Detailed Product Parameters
| Parameter | Specification |
|---|---|
| Image Format | 1/1.8″, 1/2″, 2/3″ |
| Focal Length | 12mm |
| Resolution | 5 Megapixel (5 MP) |
| Aperture | F5.6 (Fixed) |
| Mount | M12 x 0.5 (S-Mount) |
| Optical Distortion | < -1.5% |
| Relative Illumination (R.I.) | > 82.5% |
| Field of View (F.O.V.) | 1/1.8″: 41°(D) / 33°(H) / 25°(V) |
| Total Track Length (TTL) | 17.79 mm |

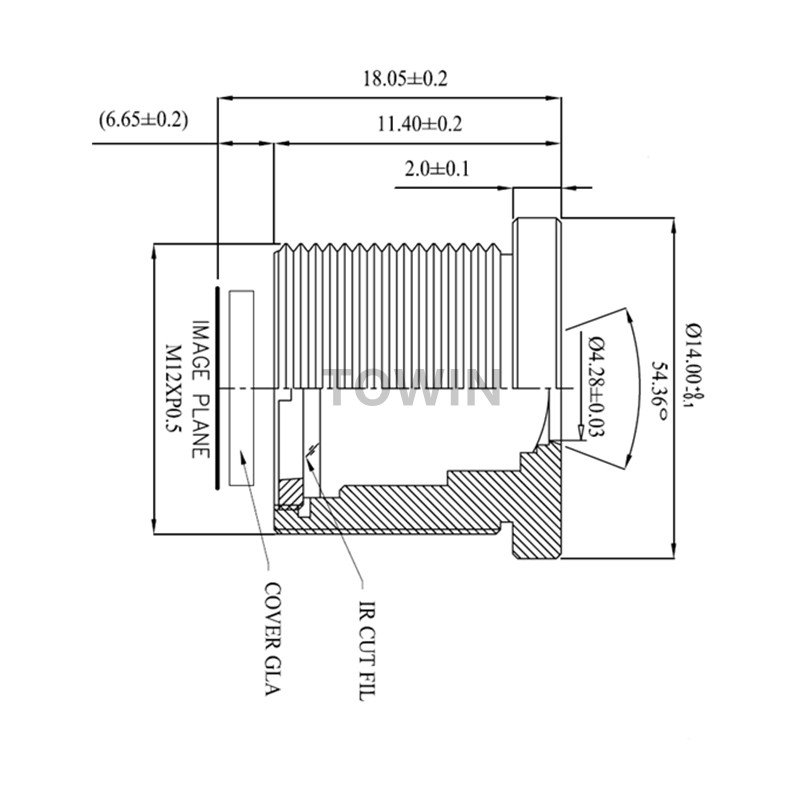

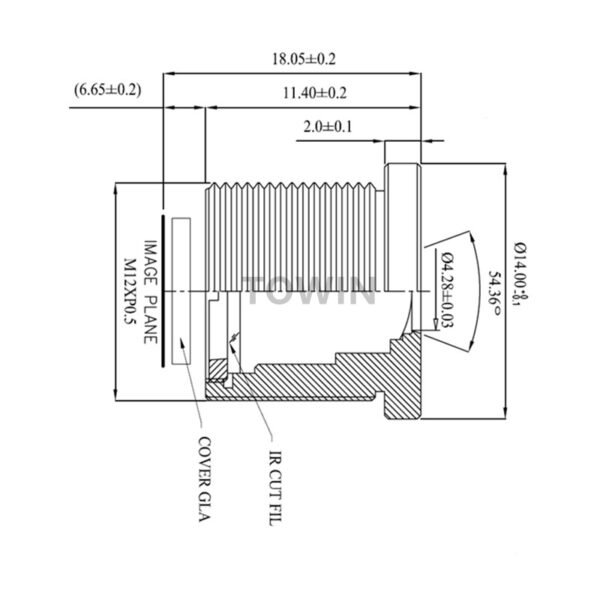

| Dimensions | Φ14 × 11.40 mm |
| Lens Construction | 6G + IRF (6 Glasses + IR Filter) |
| Iris Type | Fixed |
This product is RoHS certified, ISO9001 quality control certified, supports third-party testing, and complies with EU/domestic security equipment access standards, alleviating customer quality concerns.
Product Application Scenarios and Compatible Devices
Core Application Scenarios
This low-distortion M12 lens is primarily engineered for automated optical inspection (AOI) systems, precise industrial robot vision alignment, pharmaceutical packaging verification, high-speed barcode scanning, and multi-camera PCB assembly lines. It is exceptionally well-suited for manufacturing environments where geometric accuracy is critical for sorting, measuring, and pass/fail testing. Thanks to its ultra-compact Φ14mm profile, it easily integrates into tight mechanical enclosures, robotic arms, and handheld industrial scanners without requiring bulky structural redesigns or external lens brackets.
Compatible Devices List
The lens is fully compatible with premium 1/1.8-inch, 1/2-inch, and 2/3-inch image sensors, maximizing the capabilities of mainstream CMOS sensors from Sony, Onsemi, and OmniVision. It acts as a seamless upgrade or replacement lens for industrial smart cameras, FA board cameras, and embedded vision modules from brands like Hikrobot, Basler, FLIR, and Daheng Imaging. Additionally, we support customized focal lengths and custom F.O.V. modifications to align perfectly with your specialized hardware layout and sensor configurations.
Designed for machine vision and factory automation applications.
Frequently Asked Questions
Q: Does this lens suffer from image warping or fish-eye effects?
A: No, this lens features an advanced low-distortion optical design (< -1.5%) that keeps lines completely straight, making it perfect for measurement and inspection.
Q: Can this lens be used with standard C-mount or CS-mount cameras?
A: This is a native M12x0.5 threaded S-mount lens. To use it with a C or CS-mount camera, you will need a standard M12-to-C/CS mount adapter ring.
Q: Is the iris adjustable for changing light conditions?
A: This lens features a fixed F5.6 iris to ensure maximum depth of field and stability against industrial vibrations. Light adjustments should be managed via sensor shutter speed or external LED illumination.
