Description
Discover the perfect blend of ultra-wide field of view and high optical precision with our professional-grade 5MP 1.7mm M12 wide angle lens. Engineered with a 4G2P+IRF premium glass-plastic hybrid structure, this lens delivers stunning 5-megapixel clarity across a 100° diagonal field of view while restricting optical distortion to an exceptional <1%. Whether you are upgrading smart home devices or optimizing machine vision systems, this low distortion M12 lens provides crisp, edge-to-edge imaging without the typical fish-eye bending.
Key Performance Highlights
- True 5MP High-Resolution Clarity: Captures sharp, crystal-clear details matching high-definition sensors perfectly.
- Ultra-Wide 100° Field of View: Eliminates blind spots with an expansive 85° horizontal coverage.
- Sub-1% Ultra-Low Distortion: Keeps straight lines perfectly straight, crucial for precise optical metrics.
- Standard M12x0.5 Mount Compatibility: Drops seamlessly into existing mini-camera housings with no mechanical modifications.

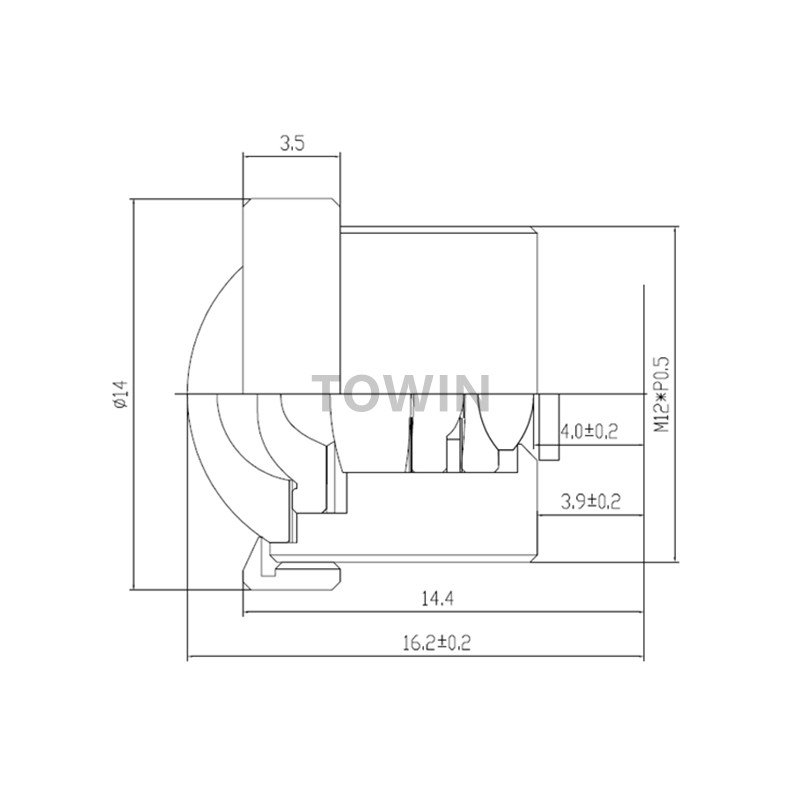

Product Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/4″ |
| Focal Length | 1.7 mm |
| Field of View (F.O.V.) | 100° (D) / 85° (H) / 73° (V) |
| Resolution | 5 Megapixel |
| Optical Distortion | <1% |
| Aperture | F2.4 |
| Mount Type | M12 x 0.5 (S-Mount) |
| Iris Type | Fixed |
| Back Focal Length (B.F.L.) | 4 mm |
| Total Track Length (T.T.L.) | 16.2 mm |
| Lens Construction | 4 Elements Glass + 2 Plastic + IR Filter (4G2P+IRF) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Targeted Applications & Device Compatibility
Core Application Scenarios
This high-performance M12 wide angle lens is purpose-built for space-constrained, high-precision imaging environments. It excels in smart video doorbells, residential video intercom units, and compact security cameras where capturing the full entryway environment is critical. Furthermore, its ultra-low distortion makes it the ideal choice for warehouse AGV/AMR robot navigation, industrial machine vision sorting, and automotive rear-view parking systems, providing accurate spatial awareness without distortion-induced computing errors.
Device Compatibility Matrix
- Sensor Optimization: Best optimized for 1/4″ format CMOS sensors; backward compatible with smaller sensor sizes.
- Smart Home Ecosystems: Direct fit for Xiaomi smart doorbells, Tuya IoT camera modules, and Ring-compatible replacements.
- Industrial Automation: Integrates seamlessly with Raspberry Pi camera boards, Arduino camera modules, and Hikvision mini-surveillance nodes.
- Custom OEM Support: Available for customized focal lengths, specialized IR coatings, and alternative F.O.V. configurations to suit bespoke hardware layouts.
“Designed for smart security and precise machine vision applications.”
FAQs
Q: Can this lens be used for night vision cameras?
A: Yes. The lens construction includes an integrated IR Cut Filter (IRF) by default to ensure realistic daytime colors. For day/night continuous surveillance, we offer customization options with IR-pass or dual-band filters to support 850nm/940nm infrared illumination.
Q: Does a <1% distortion mean the image will look perfectly flat?
A: Virtually yes. While extreme wide-angle lenses typically exhibit severe bending (barrel distortion), our custom 4G2P optical design keeps distortion below 1%. Straight lines (like door frames or walls) will appear straight to the human eye and software algorithms.
