Description

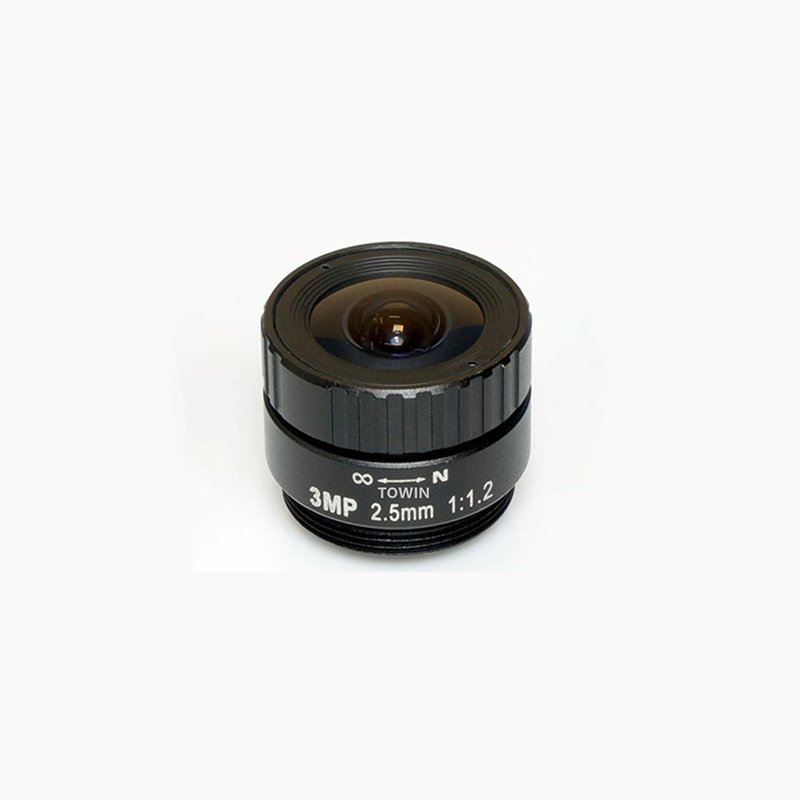

This professional-grade 3MP Wide Angle Lens is engineered for high-precision imaging in demanding environments. Featuring a 2.5mm fixed focal length and an ultra-bright F1.2 aperture, it delivers exceptional clarity and superior low-light performance. Designed with a robust CS-Mount interface, it serves as a versatile CCTV Lens and a reliable component for Machine Vision Lens applications, ensuring edge-to-edge sharpness with its 6G (all-glass) optical structure.
Scenario-Based Functional Descriptions
109° Wide-Angle Coverage, Distortion-Optimized:
This Wide Angle Lens offers a 109° horizontal FOV, capturing expansive areas like multi-lane roads or large warehouses without the heavy distortion of a fisheye. It’s an ideal ITS Lens for traffic data collection and security monitoring.
F1.2 Large Aperture for Low-Light AI Vision:
The ultra-bright F1.2 aperture maximizes light intake, delivering crisp 3MP imagery in dimly lit factories or nighttime environments. As a high-performance CCTV Lens, it enhances AI recognition accuracy by reducing image noise in low-light conditions.
Manual Focus for Precision Factory Automation:
Equipped with a high-precision manual focus ring, this CS-Mount Lens allows for exact focal plane adjustments. It is an essential FA Lens for specialized industrial tasks like robotic arm guidance, sorting, and high-speed quality inspection.
6G All-Glass Reliability in Harsh Environments:
Built with a 6-element glass (6G) structure, this Industrial Lens ensures superior thermal stability and 3MP clarity. It remains sharp across extreme temperature ranges, making it perfect for high-heat manufacturing or rugged outdoor surveillance.
Detailed Parameter Table
| Feature | Specifications | Advantage |
|---|---|---|
| Resolution | 3 Megapixel (HD) | Sharp, detailed imagery for human & machine vision |
| Focal Length | 2.5mm | Wide-angle coverage without extreme distortion |
| Aperture | F1.2 (Large) | Exceptional performance in low-light/night conditions |
| Mount Type | CS-Mount | Industry-standard for CCTV and Industrial cameras |
| Field of View | 115°(D) / 109°(H) / 90°(V) | Expansive view for large-area monitoring |
| Lens Structure | 6G (All Glass) | High durability and superior optical clarity |
| Focus Control | Manual | Allows precise adjustments for specific applications |
| B.F.L. | 8.03mm | Standard back focal length for easy integration |
FAQs
Q: Is this lens compatible with standard C-Mount cameras?
A: This is a CS-Mount Lens. While it can fit on many modern industrial cameras, if you are using a C-Mount camera, you will need a 5mm adapter ring to achieve the correct back focal distance.
Q: What makes F1.2 aperture better for AI Vision?
A: AI models require high-contrast images to identify objects accurately. The F1.2 aperture gathers more light, ensuring that even in dark conditions, the edges of objects remain defined and noise is minimized, which is vital for Machine Vision Lens reliability.
Q: Can this lens be used for outdoor security?
A: Absolutely. When paired with a weather-resistant housing, its 6G glass construction and fixed focal design make it a highly stable CCTV Lens for outdoor parking lots, street monitoring, and perimeter security.
